מצלמת PTZ לחדרי ישיבות Hall Technologies HT-CAM-1080PTZ

מפרט טכני :

מצלמת PTZ באיכות Full HD עם חיישן CMOS באיכות גבוהה של 1/2.8 אינץ '. הרזולוציה מגיעה עד 1920 × 1080 עם מהירות של עד 60 fps.

• מצלמת זום אופטי מרובה: עדשת זום אופטי 12X / 20X.
• טכנולוגיית מיקוד אוטומטי מתקדמת: מיקוד מהיר, מדוייק ויציב.
• רעש נמוך ו-SNR גבוה: תמונת SNR גבוהה מאוד מתאפשרת עם CMOS בעל רעש נמוך.
• שליחת אודיו ווידאו במקביל: HDMI, SDI, LAN.
• שליטה מלאה בסיבוב הטייה Pan / Tilt ובחירת אזורי פוקוס



  Camera
  Sensor	1/2.8-inch high quality 4k CMOS sensor
  Effective Pixels	2.07MP
  Video Format	HDMI/SDI: 1080p60 | 1080p59.94 | 1080p50 | 1080p30 | 1080p29.97 | 1080p25 | 720p59.94 | 720p50 USB3.0 Main Stream: MJPG/H.264: 1920x1080 | 1600x896 | 1280x720 | 1024x576 | 960x540 | 800x600 | 800x448 | 720x576 | | 720x480 | 640x480 | 640x360 | 480x270 | 352x288 | 320x240-@30/25/20/15/10/5fps YUY2/NV12: 1920x1080 | 1280x720 | 1024x576 | 800x600 | 800x448 | 640x480 | 640x360 | 480x270 | 320x180-@30/25/20/15/10/5fps USB3.0 Sub Stream: MJPG/H.264: 1920x1080 | 1600x896 | 1280x720 | 1024x576 | 960x540 | 800x600 | 800x448 | 720x576 | | 720x480 | 640x480 | 640x360 | 480x270 | 352x288 | 320x240-@30/25/20/15/10/5fps YUY2/NV12: 1920x1080 | 1280x720 | 1024x576 | 800x600 | 800x448 | 640x480 | 640x360 | 480x270 | 320x180-@30/25/20/15/10/5fps
  FOV	72.5°W
  Aperture	F1.8~2.4
  Optical Zoom / Digital zoom	12x / 15x
  Minimum Illumination	0.5 Lux (F1.8,AGC ON)
  White Balance	Auto, Manual,one-push white balance, specified color temprature
  Focus	3.9~46.8mm
  Focus Mode	Automatic, Manual,one-push focus
  Exposure Mode	Auto, Manual, shutter priority,aperture priority, brightness priority
  Digital Noise Reduction	2D & 3D
  BLC	On / Off
  Dynamic Range	Off, 1~8
  Image Adjustment	Brightness, chroma, saturation, contrast, sharpness, black and white mode, gamma curve,
  SNR	≥50dB
  Real-time Tracking	Maximum tracking range:6~7m
  Regional Tracking	Support for 4 regions within the horizontal-170°~+170° and within the vertical-30°~+90°
  Video Interface

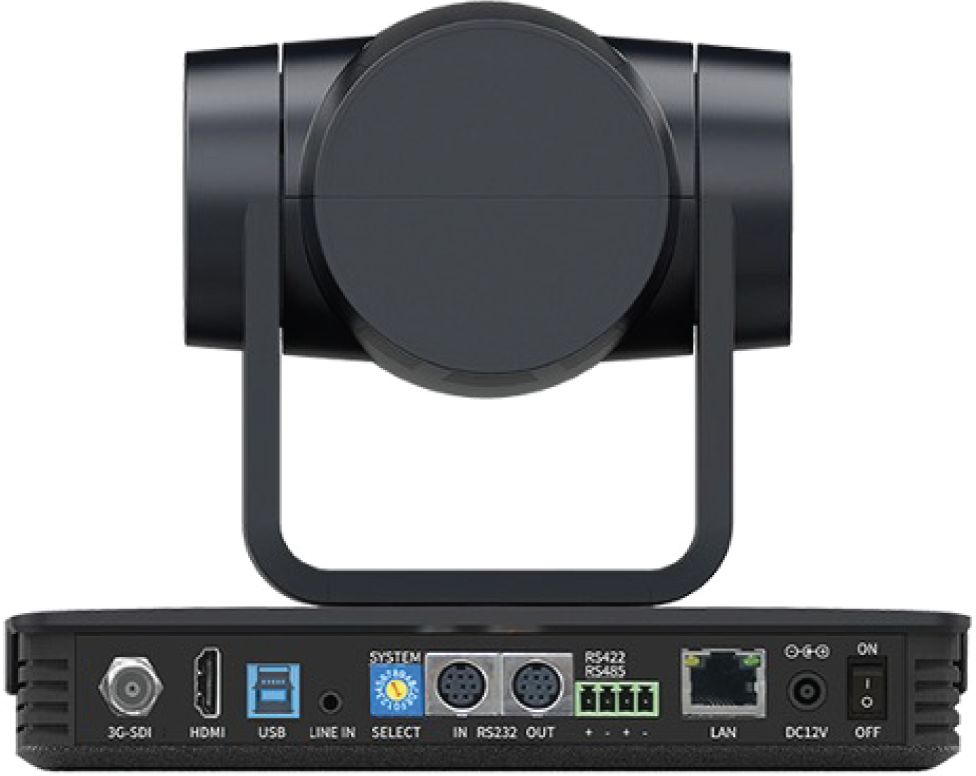

  Outputs	1x HDMI 1x SDI 1x LAN(PoE) 1x USB3.0 Type-B
  Video Encoding Format	LAN Interface: Support H.264/H.265 main and sub streams USB3.0: Supports YUY2, MJPG, H.264, and NV12 main stream
  Audio Interface
  Input	3.5mm stereo Line Input
  Outputs	1x HDMI 1x SDI 1x LAN 1x USB3.0 Type-B
  Audio Compression	AAC, MP3, G.711A
  LAN Interface
  Connection	10M/100M adaptive Ethernet port with PoE
  Network Potocol	RTSP, RTMP, ONVIF, GB-T28181, VISCA over IPVISCA, RTMPS, SRT
  Control Interface
  Connections	1x 4 pin Phoenix, RS232-in, RS232-OUT, RS422 compatible with RS485
  Video Interface
  Serial Communications Protocol	VISCA, Pelco-D, Pelco-P with baud rate support: 115200, 38400, 9600, 4800, 2400
  USB Communication protocol	UVC(video communication),UAC(audio communication)
  Power Interface
  Connection	HEC3800 Power Socket (DC12V)
  Power Adapter	Input:AC110V-AC220V Output:DC12V/22.5A
  Input Voltage	DC12V±10%
  Input Current	<1A
  Consumption	<12W
  PTZ
  Pan Rotation	-170°~+170°
  Pan Speed	0.1°/s~100°/s
  Tilt Rotation	-30°~+90°
  Tilt Speed	0.1°/s~45°/s
  Preset Speed	Pan: 100°/s Tilt: 45°/s
  Preset Quantity	Maximum 255 preset positions (10 via remote control)
  General
  Operating Temperature	-10°C to 50°C (14°F to 122°F)
  Storage Temperature	-10°C to 70°C (14°F to 158°F)
  Humidity	20% to 80%, non-condensing
  Power Consumption	5W (Max) (5V,1A)
  Device Dimension (W X H X D)	181MM X 115MM X 149MM / 7.13" x 4.53" x 5.87"
  Product Net Weight	1.15kg
  Environment	Indoor



  להורדת המפרט המלא  :  https://halltechav.com/wp-content/uploads/product/HT-CAM-1080PTZ/downloads/HT-CAM-1080PTZ_SpecSheet_Jan30.pdf
